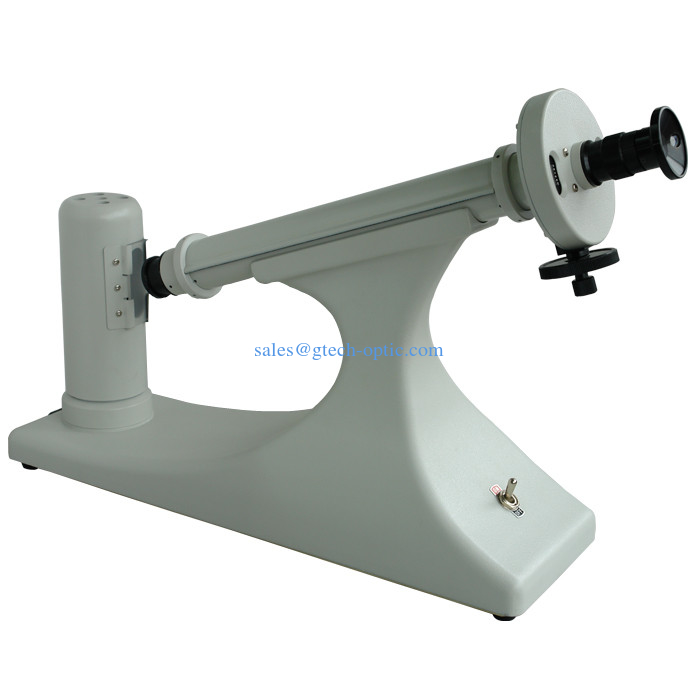

Disc Polarimeter WXG-4

Basic Information
Place of Origin: China
Model Number: WXG-4
Minimum Order Quantity: 3 pcs
Packaging Details: Standard
Payment Terms: T/T
Supply Ability: 500pcs per month
Contact Now
Product Description

Description





Manual polarimeter WXG-4 is designed to measure the optical rotation of optically active substances such as sugar solutions, turpentine, camphor. By testing, we can study the specific gravity, purity, concentration and content in the organic substances. It is widely used in the chemical industry, hospitals, universities and research institutes. The readings are very stable with a sturdy cast aluminum base.





Features



  • Visual sighting
  • Manual measurement
  • Easy to use





Specification



  • Measurement Range: -180°---+180°
  • Minimum Scale: ±0.05°
  • Accuracy: ±0.05°
  • Repeatability(б): ≤0.05°
  • Light Source: Sodium Lamp (589.44nm)
  • Round Cuvette: 100 or 200mm
  • Stable Time: 10 minutes
  • Power Requirements: AC220±22V 50Hz 20W
  • Dimensions: 60cm(L)×22cm(W)×40cm(H)
  • Weight: 7.00kg
